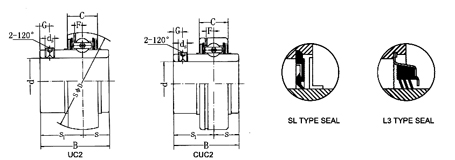

轴承座: UC 系列

  IMG IMG
轴承
型号
尺寸 毫米 英寸额定载荷 (KN) 重量
动负荷 静负荷 (Kg)
d D B C S S1 G ds F Cr Cor
UC201 12 47 31 17 12.7 18.3 4.8 M6×1x0.75 3.7 12800 6650 0.2
UC201-8 1/2 1.8504 1.2205 0.6693 0.5 0.72 0.189 1/4-2 8UNF 0.146 0.19
UC202 15 47 31 17 12.7 18.3 4.8 M6×1x0.75 3.7 0.19
UC202-10 5/8                 0.19
UC203 17 47 31 17 12.7 18.3 4.8 M6×1x0.75 3.7 0.18
UC203-11 11/16 1.8504 1.2205 0.6693 0.5 0.72 0.189 1/4-2 8UNF 0.146 0.17
UC204 20 47 31 17 12.7 18.3 4.8 M6×1x0.75 4 12800 6650 0.16
UC204-12 3/4 1.8504 1.2205 0.6693 0.5 0.72 0.189 1/4-28UNF 0.146 0.16
UC205 25 52 34.1 17 14.3 19.8 5 M6×1x0.75 4 14000 7850 0.2
UC205-14 7/8 2.0047 1.3425 0.6693 0.563 0.78 0.197 1/4-28UNF 0.154 0.23
UC205-15 15/16 0.21
UC205-16 1 0.2
UC206 30 62 38.1 19 15.9 22.2 5 M6×1x0.75 5 19500 11300 0.32
UC206-18 1-1/8 2.4409 1.5 0.748 0.626 0.874 0.197 1/4-28UNF 0.197 0.34
UC206-19 1-3/16 0.32
UC206-20 1-1/4 0.31
UC207 35 72 42.9 20 17.5 25.4 7 M8×1 5.5 25700 15300 0.48
UC207-20 1-1/4 2.8346 1.689 0.7874 0.689 1 0.276 5/16-24UNF 0.224 0.54
UC207-21 1-5/16 0.51
UC207-22 1-3/8 0.48
UC207-23 1-7/16 0.45
UC208 40 80 49.2 21 19 30.2 8 M8×1 6 29500 18100 0.64
UC208-24 1-1/2 3.1496 1.937 0.8268 0.748 1.189 0.315 5/16-24UNF 0.244 0.68
UC208-25 1-9/6 0.65
UC209 45 85 49.2 22 19 30.2 8 M8×1 6.4 31600 20600 0.68
UC209-26 1-5/8 3.3465 1.937 0.8661 0.748 1.189 0.315 5/16-24UNF 0.252 0.78
UC209-27 1-11/16 0.74
UC209-28 1-3/4 0.7
UC210 50 90 51.6 24 19 32.6 10 M10×1.25 6.5 35000 23200 0.8
UC210-30 1-7/8 3.5433 2.0315 0.9449 0.748 1.283 0.394 3/8-24UNF 0.256 0.87
UC210-31 1-15/16 0.82
UC210-32 2 0.78
UC211 55 100 55.6 25 22.2 33.4 10 M10×1.25 7 43500 29200 1.11
UC211-32 2 3.937 2.189 0.9843 0.874 1.315 0.394 3/8-24UNF 0.276 1.26
UC211-34 2-1/8 1.15
UC211-35 2-3/16 1.09
UC212 60 110 65.1 27 25.4 39.7 10 M10×1.25 7.5 47700 32900 1.54
UC212-36 2-1/4 4.3307 2.563 1.063 1 1.563 0.394 3/8-24UNF 0.299 1.67
UC212-38 2-3/8 1.52
UC212-39 2-7/16 1.45
UC213 65 120 65.1 28 25.4 39.7 10 M10×1.25 8.5 57500 40000 1.85
UC213-40 2-1/2 4.3307 2.563 1.1024 1 1.563 0.394 3/8-24UNF 0.335 1.94
UC213-41 2-9/16 1.85
UC214 70 125 74.6 29 30.2 44.4 12 M12×1.5 9 60800 45000 2.05
UC214-42 2-5/8 4.9213 2.937 1.1417 1.189 1.748 0.472 7/16-20UNF 0.35 2.26
UC214-43 2-11/16 2.16
UC214-44 2-3/4 2.06
UC215 75 130 77.8 30 33.3 44.5 12 M12×1.5 9.2 66000 49500 2.21
UC215-47 2-15/16 5.1181 3.063 1.1811 1.311 1.752 0.472 7/16-20UNF 0.362 2.24
UC215-48 3 2.12
UC216 80 140 82.6 32 33.3 49.3 12 M12×1.5 9.5 71500 54200 2.8
UC216-49 3-1/16 5.5118 3.252 1.2598 1.311 1.941 0.472 7/16-20UNF 0.374 2.98
UC216-50 3-1/8 2.85
UC217 85 150 85.7 34 34.1 51.6 12 M12×1.5 10.2 83500 64000 3.46
UC217-52 3-1/14 5.9055 3.374 1.3386 1.343 2.031 0.472 7/16-20UNF 0.402 3.68
UC217-53 3-5/16 3.54
UC218 90 160 96 36 39.7 56.3 12 M12×1.5 11.2 96000 71500 4.36
UC218-56 3-1/2 6.2992 3.7795 1.4173 1.563 2.217 0.472 1/2-20UNF 0.441 4.47
